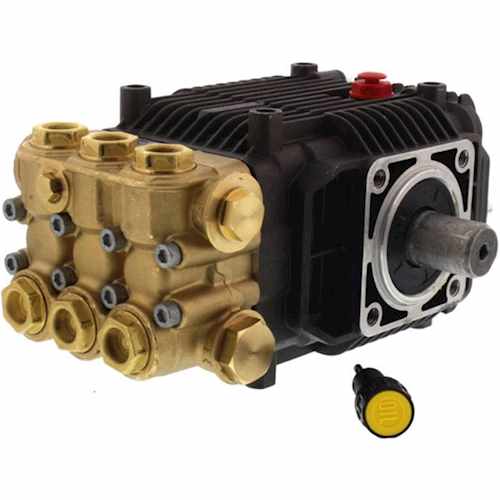

XM Series Pumps - 3 GPM @ 2500 PSI - XMA3G25N

By :

SKU : XMA3G25N
  • Quick Specs
  • Weight: 0
Regular Price: $415.00
In Stock
Quantity:
Description

Annovi Reverberi XMA 1750 rpm N Version 24mm Solid Shaft XMA3G25N XMA3.5G25N XMA4G20N

Plunger pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability.

This XMA series of pumps have precision cast cooling fins that are anodized for maximum heat dissipation. The oversized needle bearing on the drive side and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special design are impervious to water absorption and provide positive seating and extended life.

• Triplex plunger pump
• Solid shaft for belt or gear drive
• Maximum pump speed: 1750 RPM
• Shaft diameter: 24 mm solid
• Maximum horsepower requirements: 5.0 BHP
• Maximum fluid temperature: 140 Degree F.
• Inlet ports (2): 1/2"" FPT
• Discharge ports (2): 3/8"" FPT
• Drive side: Standard right
• Forged brass head and valve covers
• Solid ceramic plungers
• Weight: 14.0 lb.

OPERATING INSTRUCTIONS & PARTS MANUAL:

http://www.watercannon.com/PDF/ARManuals/XM-SXM-Series-Pumps.pdf

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Specifications

Canonical Reference: true
Weight: 0
SKU: XMA3G25N
PSI: 2500
GPM: 3
Brand: AR
