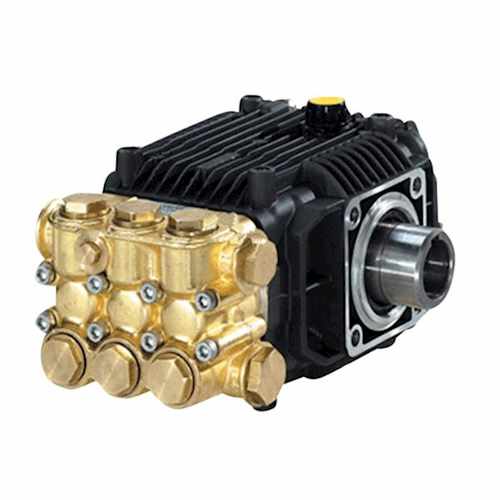

XMA Series Pumps - 3 GPM @ 1800 PSI - XMA3G18E-F33

Annovi Reverberi XMA 1750 rpm E Version 5/8"" Hollow Shaft XMA2G15E-F33 XMA2G22E-F33 XMA2.5G18E-F33

Precision cast cooling fins are anodized for maximum heat dissipation. The oversized needle bearing on the drive side and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special design are impervious to water absorption and provide positive seating and extended life.

Plunger pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability.

Annovi Reverberi pumps are a combination of exceptional degree of technology and innovation. They deliver quality and reliability worthy of a leading brand on the market. The wide range of AR pumps includes many models which vary in terms of pressure, delivery, power and technical characteristics, to satisfy widely different market demands.

• Triplex plunger pump
• Direct drive with electric flange NEMA 56C
• Maximum pump speed: 1750 RPM
• Shaft diameter: 5/8” hollow
• Minimum horsepower requirements: 4.0 BHP
• Maximum fluid temperature: 140°F.
• Inlet ports (2): 1/2"" BSP
• Discharge ports (2): 3/8"" BSP
• Drive side: Standard right
• Forged brass head and valve covers
• Solid ceramic plungers
• Weight: 15.0 lb

OPERATING INSTRUCTIONS & PARTS MANUAL:

http://www.watercannon.com/PDF/ARManuals/XM-SXM-Series-Pumps.pdf

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Canonical Reference:	true
SKU:	XMA3G18E-F33
PSI:	1800
GPM:	3
Brand:	AR
