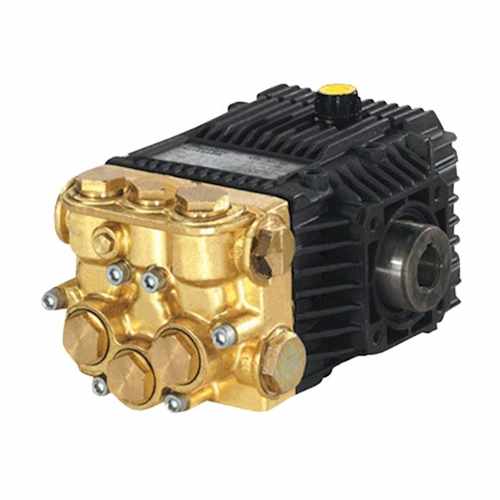

Xta Pressure Washer Pump 3GPM 1900PSI 24 mm Solid Shaft

By :

SKU : XTA3G19N
Regular Price: $375.00
In Stock
Quantity:
Description

Annovi Reverberi XTA 1750 RPM E Version 5/8"" Hollow Shaft

This AR pump features a 5/8"" hollow shaft for direct coupling to a NEMA 56-C face electric motor (bell housing not pictured). Annovi Reverberi plunger pumps like this one are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for durability and survivability.

This XTA series model features precision cast cooling fins which are anodized for maximum heat dissipation. The oversized needle bearing on the drive side and ball bearings on the non-drive side ensure proper shaft alignment and maximum life. Valve cages of special design are impervious to water absorption and provide positive seating and extended life.

• Triplex plunger pump
• Maximum pump speed: 1750 RPM
• Maximum horsepower requirements: 3.0 BHP
• Maximum fluid temperature: 160 Degree F.
• Inlet ports (2): 1/2"" BSP
• Discharge ports (2): 3/8"" BSP
• Drive side: Standard right
• Forged brass head and valve covers
• Solid ceramic plungers
• Weight: 10.0 lb.

OPERATING INSTRUCTIONS & PARTS MANUAL:

http://www.watercannon.com/PDF/ARManuals/XT-Series-Pumps.pdf

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Specifications

Canonical Reference: true
SKU: XTA3G19N
PSI: 1900
GPM: 3
