2.5 GPM @ 2700 PSI - RCV2.5G27D-F7

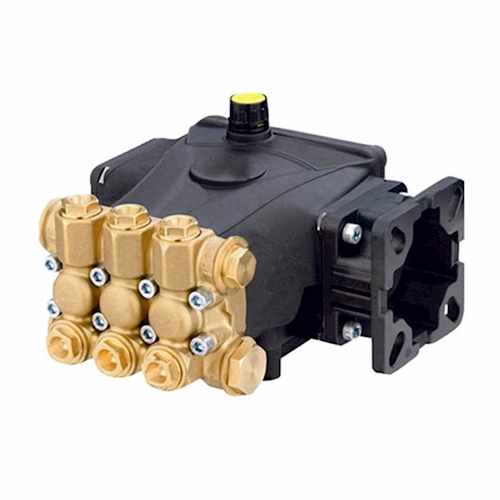

Annovi Reverberi RCV Triplex Plunger Pump D Version 3/4"" Hollow Shaft RCV2G25D-F7 RCV2.5G27D-F7

Annovi Reverberi/AR North America RCV D Version with F7 flange series pumps are designed for direct drive on gasoline engines ranging from 5–7.0 HP and are intended for use with heavy tasks. These triplex plunger pumps feature the latest in design and technology.  They are life tested over 2,000 hours at maximum performance. The RCV is a result of Annovi Reverberi's combined 60 years of pump building experience and expertise.

Features
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications
• Maximum pump speed: 3,400 RPM
• Shaft diameter: 3/4” hollow
• Maximum horsepower requirements: 4.54 GHP
• Maximum fluid temperature: 140°F.
• Inlet ports (2): 1/2"" female
• Outlet ports (2): 3/8"" female
• Oil capacity: 9.81 oz
• Weight: 11.0 lb.

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Canonical Reference:	true
SKU:	RCV2.5G27D-F7
PSI:	2700
GPM:	2.5
