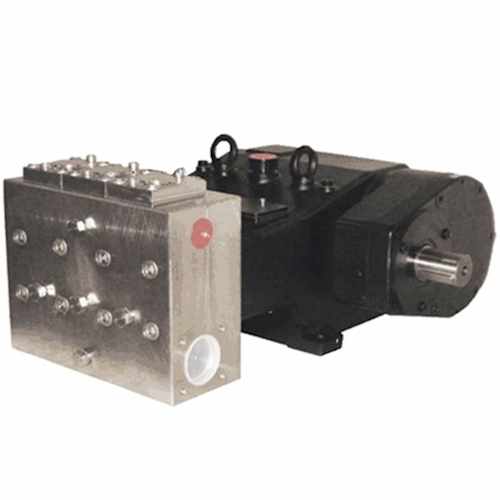

GENERAL PUMP-55.5GPM - 1160PSI - MSZ45

By :

SKU : MSZ45
Regular Price: $0.00
In Stock
Quantity:
Call to Order 800-333-9274
Description

General Pump has been the world leader in pressure washer triplex plunger pump development since 1982. While known as the leader in triplex plunger pumps for the pressure cleaning industry, now they have expanded into Industrial pumps rated up to 112 gallons per minute or pressures up to 21,750 PSI to serve Vehicle Wash as well as many Industrial Applications including Sewer Jetting, Oil and Gas Industries, Mining Industries, Mobile Pressure Wash, Food Industries and Exterior Building Maintenance.


Always striving to serve our customers better Water Cannon now offers the complete line of General Pumps and Industrial General Pumps at discounted prices. Water Cannon offers online discounts for volume and you can save up to 20% additional with an added bonus of free freight. General Pump’s motto; ""We Will Find A Way”, now with Water Cannon’s help at discounted prices.

Emperor Pumps MSN/MSZ Series Aggressive Environment Pumps MSN36 MSN40 MSN45 MSN50 MSN55 MSZ45 MSZ50

Features:
• High Pressure Triplex Plunger Pump with gear box
• 316 Stainless Steel or Duplex Stainless Steel (ASTM A890) Manifold
• MSZ features 316 Stainless Steel wetted parts including valve plate and seat
• MSN feature 316 Stainless Steel wetted parts with 431 Stainless Steel valve plate and seat
• Gear reducer options in 1500 or 1800 RPM
• Gear Ratios: 1500 RPM=2.037:1, 1800 RPM=2.417:1

Materials:
• Manifold in Duplex F51
• Plungers are Ceramic
• 316 Stainless Steel Valves and Wetted Parts
• MSN Features High Pressure ASI Stainless Valves
• Forged Steel Connecting Rods
• Pump Body in Cast Iron

Common Specifications:
• Maximum Inlet Pressure: 45 PSI
• Maximum Fluid Temperature: 140° F
• Inlet Port Thread: 2-1/2"" BSP-F
• Discharge Port Thread: 1-1/4"" BSP-F
• Shaft Diameter: 1.969""/50 mm
• Stroke: 2.362""/60 mm
• Pump Dimensions: 27.8"" x 23.8"" x 12.1""
• Crankcase Oil Capacity: 338 oz. (10 liters)
• Shipping Weight: 650 lbs./750 kg

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Specifications

Canonical Reference: true
SKU: MSZ45
PSI: 1160
GPM: 55.5
