General Pump has been the world leader in pressure washer triplex plunger pump development since 1982. While known as the leader in triplex plunger pumps for the pressure cleaning industry, now they have expanded into Industrial pumps rated up to 112 gallons per minute or pressures up to 21,750 PSI to serve Vehicle Wash as well as many Industrial Applications including Sewer Jetting, Oil and Gas Industries, Mining Industries, Mobile Pressure Wash, Food Industries and Exterior Building Maintenance.
Always striving to serve our customers better Water Cannon now offers the complete line of General Pumps and Industrial General Pumps at discounted prices. Water Cannon offers online discounts for volume and you can save up to 20% additional with an added bonus of free freight. General Pump’s motto; ""We Will Find A Way”, now with Water Cannon’s help at discounted prices.

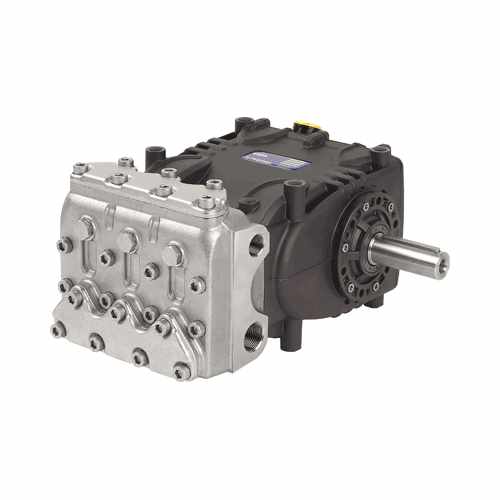

Emperor Pumps KEZ Series Aggressive Environment Pumps KEZ20A KEZ22A KEZ24A KEZ28A KEZ30A KEZ36A
Features:
• High Pressure Triplex Plunger Pump
• Patent pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• New high performance aluminum alloy connecting rods and a floating wrist pin enable extra load at half the weight. This reduces vibrations and off center loads on the bearing for longer life and quieter operation
• Patent-pending “high tech” low and high pressure seals
Materials:
• Die-cast aluminum crankcase
• 316 Stainless steel manifold
• Taper roller bearings
• Special antifriction light alloy, forged, connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrided
• Cast iron piston guide, nickel-treated
• Solid ceramic plungers
• 316 Stainless Steel valves
Common Specifications:
• Maximum Inlet Pressure: 45 PSI
• Minimum Inlet Pressure: 5 PSI
• Maximum Fluid Temperature: *140° F
• Inlet Port Thread: 1"" NPT-F
• Discharge Port Thread: 1/2"" NPT-F
• Shaft Diameter: 1.181""/30 mm
• Stroke: 0.9055""/23 mm
• Pump Dimensions: 15.1"" x 13.4"" x 7.7""
• Crankcase Oil Capacity: 67.63 oz. (2 liters)
• Shipping Weight: 88 lbs./40 kg
Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)
California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)
| Canonical Reference: | true |
| SKU: | KEZ24A |
| PSI: | 3000 |
| GPM: | 11.9 |
| RPM: | 1450 |
