General Pump has been the world leader in pressure washer triplex plunger pump development since 1982. While known as the leader in triplex plunger pumps for the pressure cleaning industry, now they have expanded into Industrial pumps rated up to 112 gallons per minute or pressures up to 21,750 PSI to serve Vehicle Wash as well as many Industrial Applications including Sewer Jetting, Oil and Gas Industries, Mining Industries, Mobile Pressure Wash, Food Industries and Exterior Building Maintenance.
Always striving to serve our customers better Water Cannon now offers the complete line of General Pumps and Industrial General Pumps at discounted prices. Water Cannon offers online discounts for volume and you can save up to 20% additional with an added bonus of free freight. General Pump’s motto; "We Will Find A Way”, now with Water Cannon’s help at discounted prices.

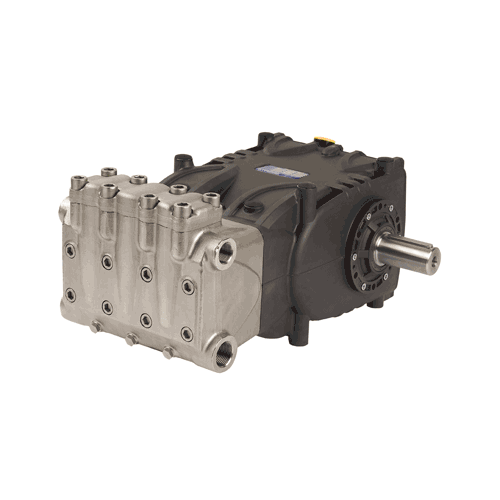

Emperor Pumps HF Series Industrial Pumps HF18A HF22A HF25A
Features:
• A “New Generation” Pump
• Triplex Plunger Pump, available in 4 flows
• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• SAE-C hydraulic drive bell housing and flexible couplers available
• Available with external gear box (direct drive only)
Materials:
• High resistance light alloy die cast crankcase
• 420 stainless steel manifold, nickel treated
• Taper roller bearings
• Special antifriction, forged, light alloy connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrited
• Cast iron piston guide, nickel treated
• Solid ceramic plungers
• Stainless steel valves
Common Specifications:
• Maximum Inlet Pressure: 45 PSI
• Maximum Fluid Temperature: 140° F
• Inlet Port Thread: 1" NPT-F
• Discharge Port Thread: 3/4" NPT-F
• Shaft Diameter: 1.575"/40 mm
• Stroke: 1.969"/50 mm
• Pump Dimensions: 20" x 14.5" x 9.4"
• Crankcase Oil Capacity: 128.5 oz. (3.8 liters)
• Shipping Weight: 132 lbs./60 kg
| Manufacturer: | General Pump |
| SKU: | HF18A |
| PSI: | 8700 |
| GPM: | 8.06 |
| Drive Type: | 1.575 Inch Shaft |
| RPM: | 800 |
| Plumbing Type: | Not Included |
| Finance Option 1: | 144.07/Month for 48 Months - Click HERE |
| Finance Option 2: | 458.25/month for 13 months - Click HERE |
| Brand: | GENERAL PUMP |
